For control valves

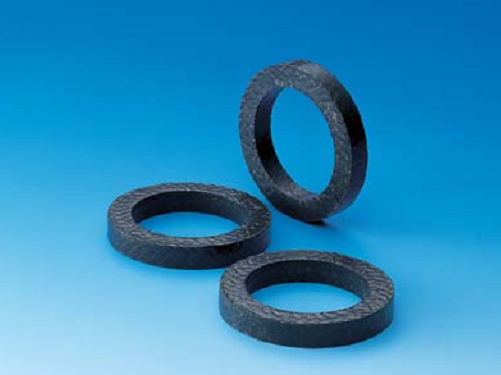

This ring-shaped packing is manufactured by treating high-strength carbon fiber with a PTFE dispersion with subsequent plaiting of the strands to an angular cross-section and finishing with PTFE and lubricant oil.
Can be used as a shaft seal for control valves and directly as an adapter packing.
Can also be used on its own for control valves of class 1500 or below.
FEATURES
Carbon Fiber Coil PackingCoil packing of high-tension carbon fiber yarn, processed with PTFE dispersion, then braided into square cross section and finished with PTFE and fine graphite (6399L processed with lubricant)
APPLICATION
Used as seal for reciprocating machine shaft for water/oil fluid, solvent vapor, etc. and for valve stem.
SPECIFICATION
FLUID |
Water, oil, steam | |
TEMP |
C | 300 |
PRESSURE |
Mpa | 43.1 |
AVAILABLE THICKNESS SIZE |
mm | 5 |
DIMENSION |
mm | 3.0 to 25.4 |
