For pumps, rotary and reciprocating machines
This coil packing is manufactured by treating aramide fiber strands with a PTFE dispersion and a lubricant oil with subsequent plaiting to an angular cross-section.
Featuring the benefits of superior wear resistance and an unprecedented endurance, this packing is the closest thing to a maintenance-free seal achieved so far.
Outstanding performance characteristics as a rotary shaft seal for slurries and high-viscosity fluids.
FEATURES

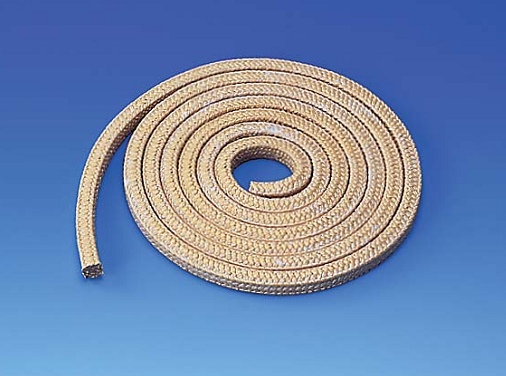

Aramid Coil Packing
Coil packing of aramid yarn, impregnated with PTFE dispersion and lubricant, then braided into a square cross section
APPLICATION
Used as shaft seal for rotary pumps for urban drainage, sewage, slurry, etc. Can be used also for valves and reciprocating machine shafts
SPECIFICATION
FLUID |
Water, oil, steam | |
TEMP |
C | 260 |
PRESSURE |
Mpa | 14.7 |
SPEED |
m/s | 16 |
DIMENSION |
mm | 3.0 to 25.4 |
