For water and oil Pumps

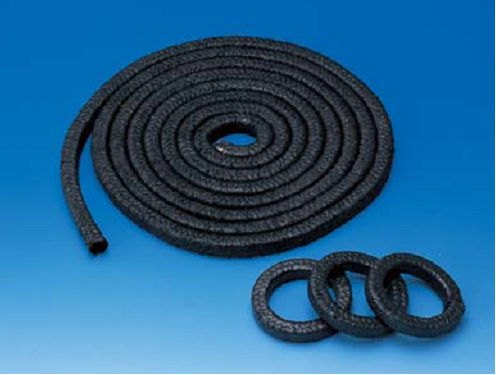

This coil packing is manufactured by treating carbonized fiber with a PTFE dispersion and lubricant oil with subsequent plaiting of the strands to an angular cross-section and finishing with PTFE, colloidal graphite dispersion, and lubricant oil.
Can accommodate a relatively large variety of fluids.
Permits a large maximum PV value and maximum peripheral speed.
Reduces shaft wear by packing.
FEATURES
Carbonized Fiber Coil Packing Coil packing of carbon fiberyarn, processed with PTFE dispersion and lubricating oil, then braided into square cross section and finished with PTFE, fine graphite and lubricating oil
APPLICATION
Used as seal for rotary shaft treating industrial water, urban drainage, animal/plant/mineral oil, weak acid, weak alkali, etc.
SPECIFICATION
FLUID |
Water, oil, steam | |
TEMP |
C | 200 |
PRESSURE |
Mpa | 4.9 |
AVAILABLE THICKNESS SIZE |
mm | 20 |
DIMENSION |
mm | 3.0 to 25.4 |
