PGY-Packing 100F

Mã sản phẩm: PGY-100F

Phí vận chuyển:

Liên hệ báo giá

Mô tả ngắn

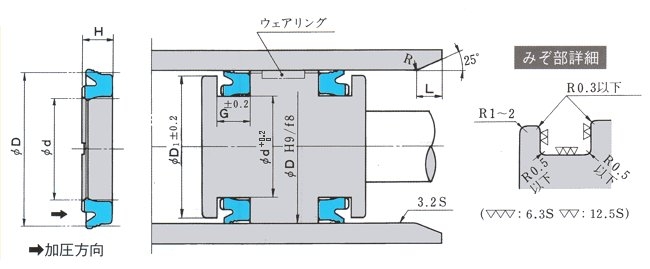

Packings have a directional nature as in the above drawing. Be careful of the direction when instaling.
It may not be installed in standalone type groove depending on the location of mount groove

Mô tả

Packing / Groove Dimensions (Unit：mm)						Instruction code
D	d	H	G	D₁	L	Standard(RN 713)	For heat resistance(RF 905)
20	12	5.2	5.7	17	3	PGY -0020001N713
25	17	5.2	5.7	23	3	PGY -0025001N713
28	20	5.2	5.7	26	3	PGY -0028001N713
30	22.4	5.2	5.7	29	3	PGY- 30
32	24	5.2	5.7	31	3	PGY - 32
40	30	6.5	7	39	3	PGY- 40
50	40	6.5	7	49	3	PGY- 50
63	53	6.5	7	62	3	PGY- 63
80	70	6.5	7	79	3	PGY- 80
100	85	9.5	10	98.5	4	PGY-100	PGY-100F
120	105	9.5	10	118.5	4	PGY-120
125	110	9.5	10	123.5	4	PGY-125	PGY-125F
140	125	9.5	10	138.5	4	PGY-140
150	135	9.5	10	148.5	4	PGY-150	PGY-150F
160	145	9.5	10	158.5	4	PGY-160
180	165	9.5	10	178.5	4	PGY-180
200	180	12	13	198	5	PGY-200
250	230	12	13	248	5	PGY-250
300	280	14	15	298	5	PGY -300
